Model.:SMT-FM009
Model.:SMT-FM009G
Model.:SMT-FM009F
Model.:SMT-FM009L-1/WTJ001
Model.:SMT-FM009L
Model.:SMT-FM008
Inlet pressure:25-250PSIG outlet pressure:280mmH2O=(11"W.C.) flow:Kg/hr 2 BTU/hr 95200 port size:INLET QCC-Q1 Or 7/8" -14UNF OUTLET 5/8" -18UNF or 1/4" NPT
INLET PRESSURE:25-250PSIG OULET PRESSURE:280mmH2O=(11"W.C. FLOW:Kg/hr 2 BTU/hr 95200 PORT SIZE:INLET QCC-Q1 Or 7/8" -14UNF OUTLET 5/8" -18UNF or 1/4" NPT
propane or gas quick release adapter Size 1/2" and 3/8" CSA standard for North America
DIMENSIONS:48*48*6cm Volume Net:2.76KG
AA battery igniter Output: Voltage:≥18KV Life Time:≥500,000 Times Temperature:-20°C-120°C Certification: CE,NULL
BBQ grill knob Diameter: 65mm Inserts: 6mm, 8mm,9mm,10mm(choose the right one you want) Material: ABS The printing can be according to customer's requirement
BBQ grill knob Diameter: 65mm Inserts: 6mm, 8mm,9mm,10mm(choose the right one you want) Material: ABS The printing can be according to customer's requirement

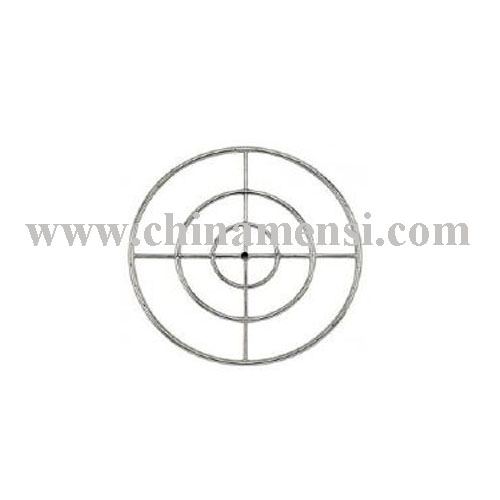

Material: 304 stainless steel Specification: Burner thickness is 0.8mm Burner size 6"12",18",24",30",36"are available Can be double ring burner, single ring burner, crossed ring burner, steel burner with painted This is one of the most advanced designs of fire pit rings on the market, to create dramatic and luminous fires. "6"" burner is a single ring made of 5/8'' SS Tube with 1/2'' Pipe gas intake " "12"", 18"" and 24"" double burner rings are made of 3/4"" SS tube and cross feedersare made of 5/8"" SS tube with 1/2"" gas intake. " 30"and 36" burners are TRIPLE HIGH CAPACITY fire pit rings with 3/4" gas inlets, two outer rings are made of 3/4" SS tube and inner ring with feeders is made of 5/8" SS tube. The 30" needs 250,000 BTU's of gas, and the 36" needs 300,000-400,000 BTU's of gas to achieve a decent flame.
Any length will be available, Most common is 200mm,300mm,350mm, 450mm,50mm,600mm We can adjust the open valve time by adjusting the thermocouple component as you want Testing: Voltage testing, resistance testing, tension testing, appearance checking and endurance test ISO9001:2008 passed enterprise
