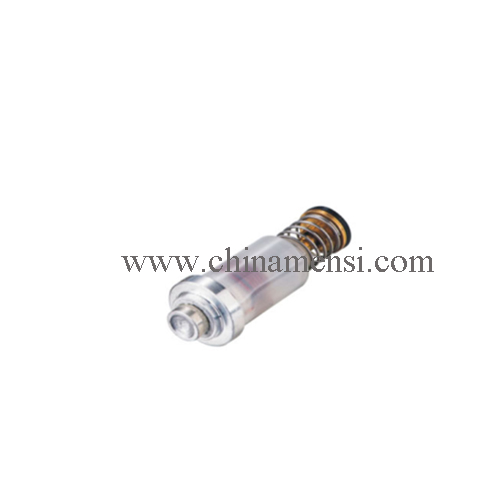

Magnetic Gas Valve

Product Name : Magnetic Gas Valve

Technical parameters:

Opening current: ≤ 80 mA

Closed valve current:≥ 20 mA

Free travel: 29±0.5 mm

Working stroke: 25±0.4 mm

Internal resistance: 20  mΩ ±10%

 Sealing force: full compression ≥ 2.6 N





Working Principle :

When thermocouple heat, it will generate thermoelectri power, which make the magnet/solenoid  valve work properly.

Specific working principle for gas appliance as follows: When you press the knob, a small fire lit by its flame heating thermocouple, thermoelectric power generation. Thermoelectric power through the wire introducing electromagnetic

coil generates a magnetic field pull the magnet/solenoid valve, the gas valve opens, the combustion passage is open,

maintain its normal combustion. In the event of high winds or spill soup, etc., putting out the fire, the thermocouple

thermoelectric power drops quickly to zero, the coil energized, magnet/solenoid valve failure, rapid reset in spring,

the valve closes the gas path, terminate gas supply to ensure safety.
