Igniter & Electrode

•

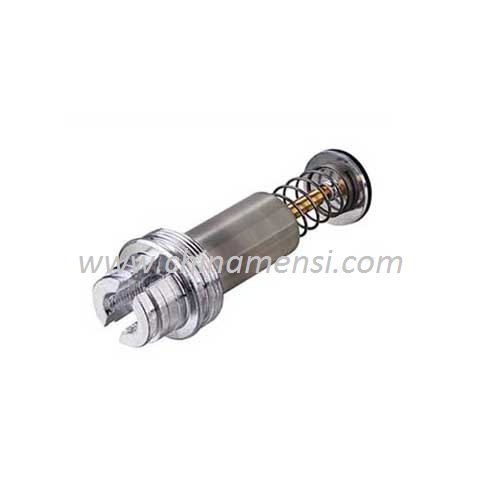

  Solenoid Valve

  Technical parameters: Opening current: ≤ 120mA Closed valve current: ≥ 40 mA Free travel: 49.5 ± 0.5 mm Working stroke: 42.5 ± 0.4 mm Internal resistance: 20 mΩ ± 10% Sealing force: full compression ≥ 4.8 N

•

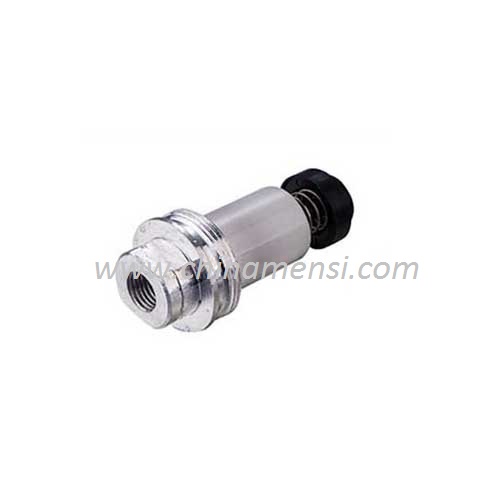

  Gas Magnet Valve

  Technical Parameters: Opening current: ≤ 120mA Closed valve current: ≥ 40 mA Free travel: 35 ± 0.5 mm Working stroke: 30 ± 0.4 mm Internal resistance: 20 mΩ ± 10% Sealing force: full compression ≥ 4.6 N

•

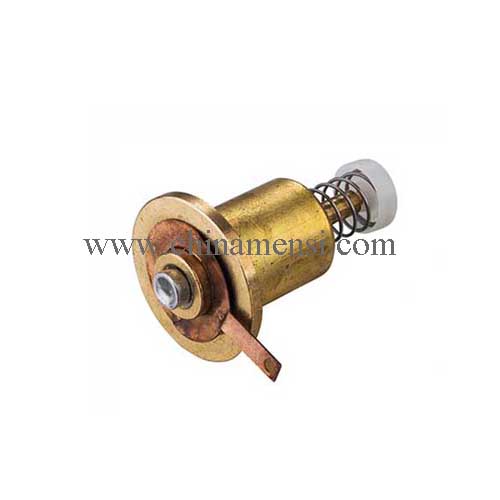

  Gas Magnetic Valve

  Technical parameters: Opening current: ≤ 120mA Closed valve current: ≥ 40 mA Free travel: 35 ± 0.5 mm Working stroke: 30 ± 0.4 mm Internal resistance: 20 mΩ ± 10% Sealing force: full compression ≥ 3.8 N

•

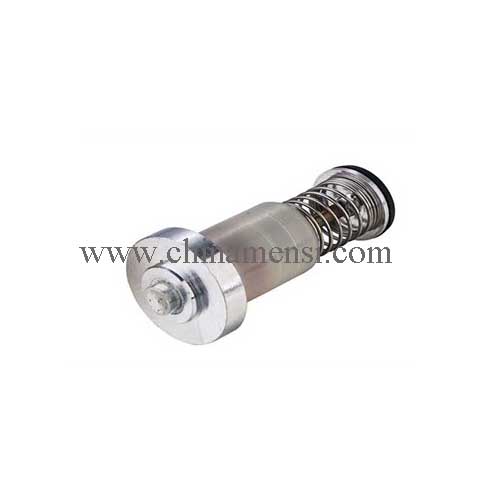

  Cooker Solenoid Valve

  Technical Parameters: Opening current: ≤ 120mA Closed valve current: ≥ 40 mA Free travel: 39 ± 0.5 mm Working stroke: 32 ± 0.4 mm Internal resistance: 20 mΩ ± 10% Sealing force: full compression ≥ 4.6 N

•

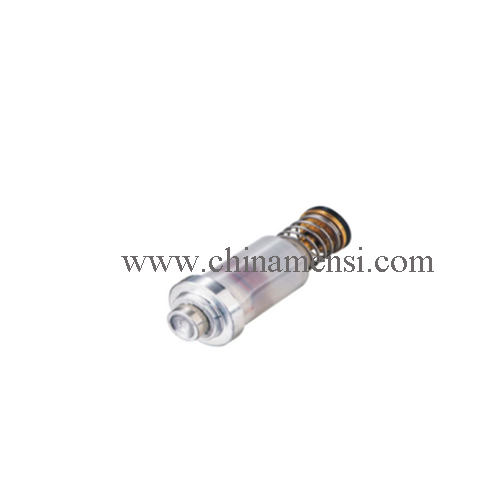

  Magnetic Gas Valve

  Technical parameters: Opening current: ≤ 80mA Closed valve current: ≥ 20 mA Free travel: 29 ± 0.5 mm Working stroke: 25 ± 0.4 mm Internal resistance: 20 mΩ ± 10% Sealing force: full compression ≥ 2.6 N

•

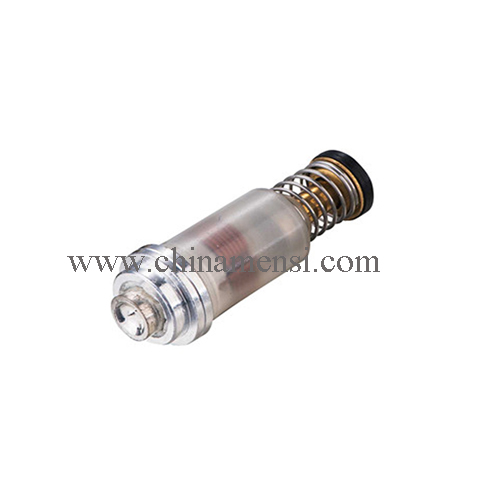

  Magnetic Safety Valve

  Technical Parameters: Opening current: ≤ 120mA Closed valve current: ≥ 40 mA Free travel: 35 ± 0.5 mm Working stroke: 30 ± 0.4 mm Internal resistance: 20 mΩ ± 10% Sealing force: full compression ≥ 4.6 N

•

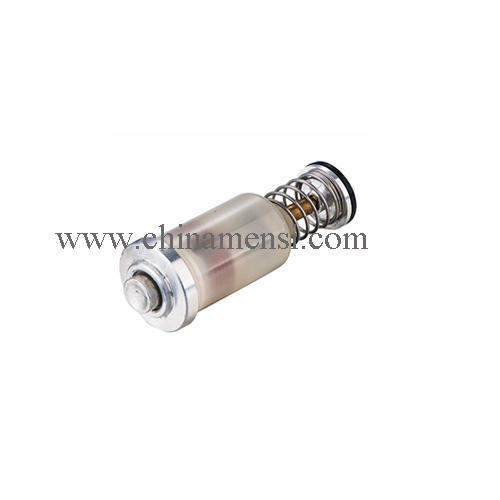

  Magnetic Solenoid

  Technical parameters: Opening current: ≤ 120mA Closed valve current: ≥ 40 mA Free travel: 36.5 ± 0.5 mm Working stroke: 30.5 ± 0.4 mm Internal resistance: 20 mΩ ± 10% Sealing force: full compression ≥ 4.6 N

•

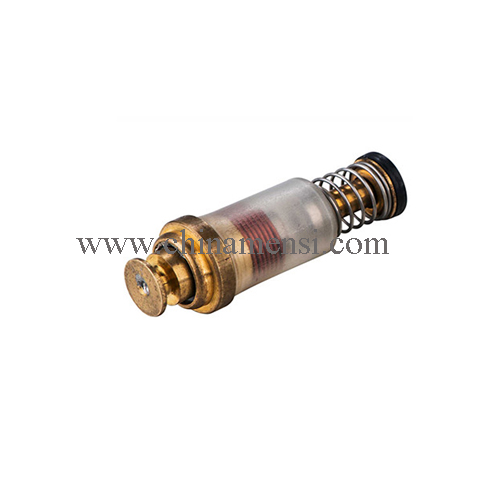

  Electromagnetic Valve

  Technical parameters: Opening current: ≤ 80mA Closed valve current: ≥ 20 mA Free travel: 28 ± 0.5 mm Working stroke: 24 ± 0.4 mm Internal resistance: 20 mΩ ± 10% Sealing force: full compression ≥ 2.6 N

•

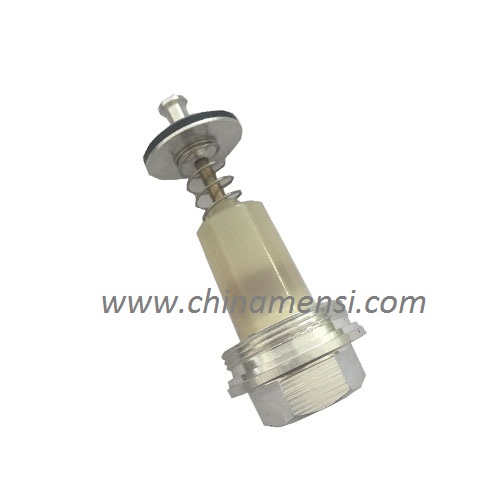

  Magnet Unit

  Media: Gas Type: Cooktop Parts
