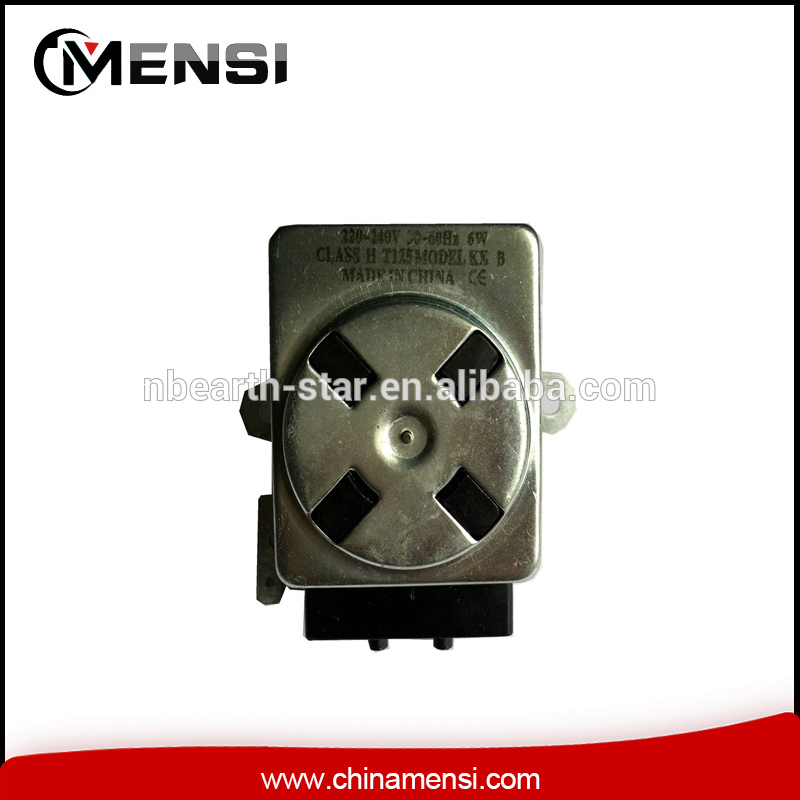

220V Barbecue Motor

220V Barbecue Motor

Model NO.:ESMO-002

Type: Induction Motor Frequency: 60HZ Output Power: 6W Protect Feature: Waterproof Certification: CE, ROHS AC Voltage: 208-230 / 240 V Efficiency: IE 4

Share This:
Product Description

Oven Grill Motor for oven/ gas cooker
12-240V 6W
2.5/3 3.3/4 4.2/5 5/6 8.3/10 10/12 20/24 30/36 RPM

Specifications

Oven Grill Motor for oven/ gas cooker
12-240V 6W
2.5/3 3.3/4 4.2/5 5/6 8.3/10 10/12 20/24 30/36 RPM

Oven Grill Motor for oven/ gas cooker :

Rated Voltage 12 24 100 110 120 220 240   VAC
Power Frequency 50/60 HZ
Rotation CW,CCW,CW/CCW
Speed 2.5/3 3.3/4 4.2/5 5/6 8.3/10 10/12 20/24 30/36 R.P.M
Stall Torque 6.0 5.0 4.5 4.0 1.5 1.5 0.5 0.5 kgf-cm
Frictional Torque 7~10 kgf-cm
Number of Poles 8 Pole
Input Power 3.7 , 4.0 W
Insulation Strength AC 1500V-1min Cut-Off Current :10mA
Insulation Class A / E
